What a base plate actually does

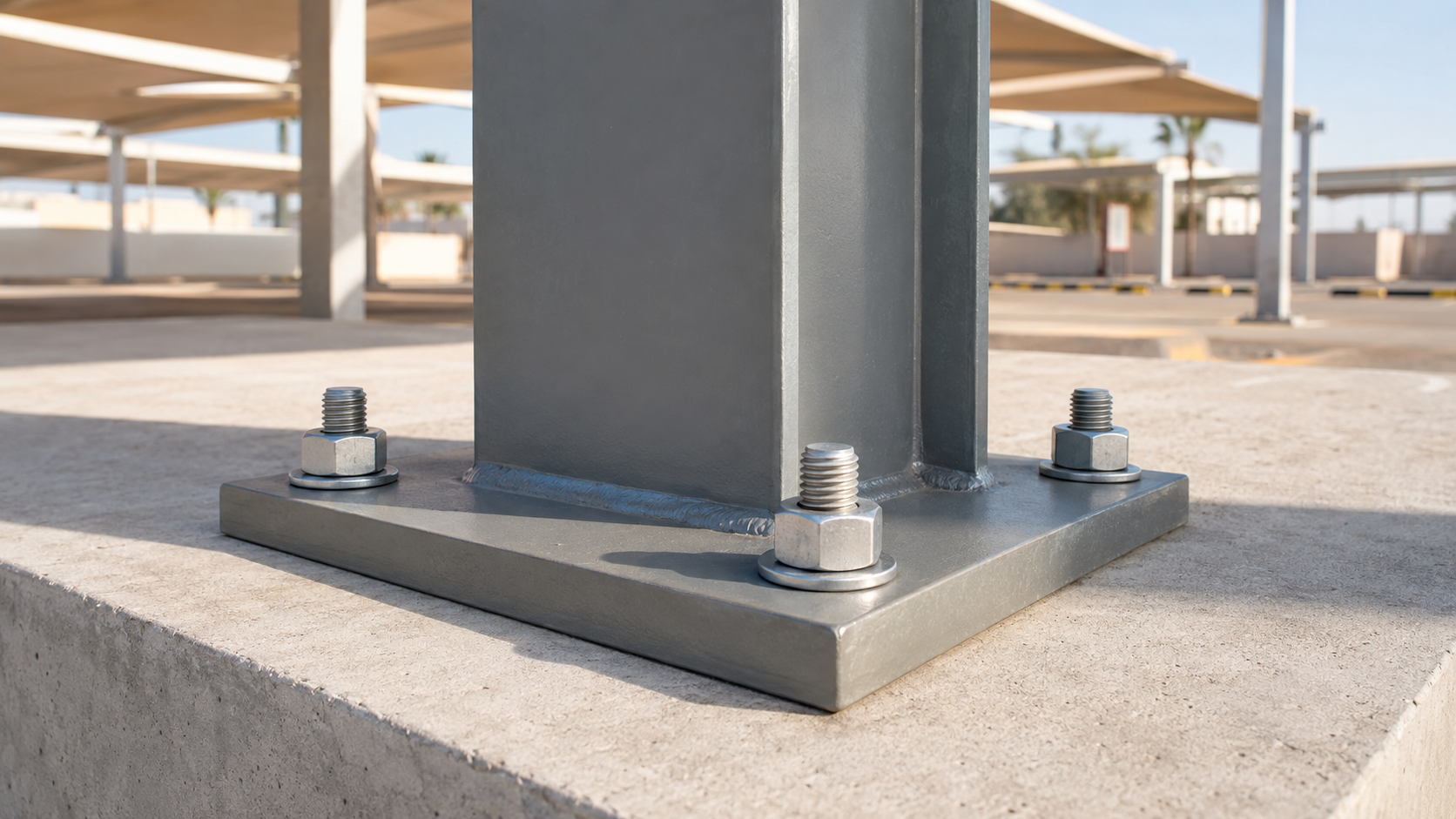

A base plate is the steel plate fixed at the bottom of a parking shade column. It creates a wider, controlled connection between the vertical steel column and the concrete foundation. Instead of concentrating the structural forces through the narrow column section, the plate helps distribute them into the supporting concrete.
The plate also provides positions for anchor bolts, which hold the column to the foundation and resist movement caused by wind and other loads.
Why this connection matters
A car parking shade acts like a large outdoor roof. Wind can push against it, pull upward on the fabric or roof panels, and create bending forces at the columns. The column-to-foundation connection is therefore one of the most important parts of the complete structure.
- ✓ Transfers compression and bending forces to the foundation
- ✓ Provides a secure anchor-bolt connection
- ✓ Helps keep columns aligned during installation
- ✓ Allows proper welding and inspection around the column base
- ✓ Supports future maintenance or replacement where designed appropriately
Base plate size and thickness are not universal
There is no single base plate size suitable for every shade. Required dimensions depend on the column size, shade span, roof type, wind exposure, structural loads, anchor-bolt spacing and concrete foundation.
A plate that is too thin may bend. A plate that is too small may not distribute forces effectively. Incorrect edge distances or anchor positions can also damage the concrete. These details should be selected as part of the structural design, not guessed at site.
Base plate fixing versus embedding a column
Some shade columns are installed with a base plate above a concrete foundation, while others may be embedded or detailed differently. Neither method should be treated as automatically stronger in every situation. Strength depends on engineering, materials, foundation depth, corrosion protection and workmanship.
A visible base plate can make alignment and inspection easier, but it still needs suitable anchors, grout or bearing detail, welding and protective coating. An embedded column needs careful foundation and corrosion detailing.
What clients should check
Ask the contractor to specify the column, base plate, anchor bolts and concrete work in the quotation. Confirm whether civil work is included and whether the steel receives suitable primer and finish. For large spans or exposed locations, request appropriate structural confirmation before fabrication.
Frequently asked questions
Is a thicker base plate always better?
Not by itself. Thickness, width, steel grade, anchor layout and foundation design must work together.
Can a shade column be fixed directly to paving blocks?
No. Pavers are a surface finish, not a structural foundation. The column needs a suitable concrete support and fixing detail.
Do anchor bolts prevent the column from moving?
They form a key part of the connection, but their size, embedment, spacing and installation must match the design loads and concrete foundation.
